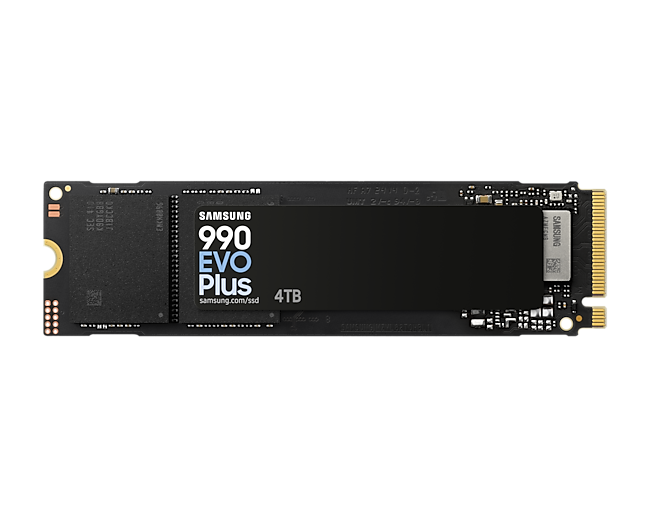

The Samsung 990 EVO Plus PCIe 4.0 NVMe M.2 SSD 4TB offers a blend of high performance, efficiency, and substantial storage capacity.
Key Features:
-
Exceptional Speed: Delivers sequential read speeds up to 7,250 MB/s and write speeds up to 6,300 MB/s, facilitating rapid data access and transfer.
-
Enhanced Power Efficiency: Achieves up to 73% improved power efficiency compared to previous models, promoting longer battery life and reduced energy consumption.
-
Versatile Compatibility: Supports PCIe® 4.0 x4 and PCIe® 5.0 x2 interfaces, ensuring flexibility for current and future computing needs.
-
Robust Thermal Management: Features a nickel-coated controller and advanced thermal control algorithms to maintain optimal operating temperatures and consistent performance
-
Ample Storage Capacity: Provides a 4TB capacity, offering extensive space for applications, games, and large files, catering to both personal and professional storage requirements.
Spectacular speed everyday
Experience lightning-fast file transfers. The 990 EVO Plus with the latest NAND technology delivers boosted sequential read/write speeds up to 7,250/ 6,300MB/s*. Huge files, instant transfer.

* Sequential and random write performance was measured with Intelligent Turbo Write technology being activated. Intelligent Turbo Write operates only within a specific data transfer size. Performance may vary depending on SSD’s firmware, system hardware & configuration and other factors. For detailed information, please contact your local service center. To maximise the performance of the 990 EVO Plus, please check whether your system supports PCIe® 4.0 or PCIe® 5.0 at the Intel or AMD website. Product image shown for illustrative purposes only; actual product may differ.
Test system configuration: AMD Ryzen9 7950x 16-Core Processor CPU@4.5GHz, DDR5 4800MHz 16GBx2 (PC5-38400), OS-Windows 11 Pro 64bit, Chipset - ASRock X670E Taichi.
Cool power through your day
Optimised efficiency, extended performance. The nickel-coated controller helps increase MB/s per Watt by 73%, achieving the same power level and thermal control with less power consumption. Stay focused on work or play with no overheating or battery life worries.

| Form Factor | M.2 (2280) |
| Capacity | 4TB |
| Sequential Read Speed | Up to 7,250 MB/s |
| Application | Client PCs |
| INTERFACE | PCIe® Gen 4.0 x4 / 5.0 x2 NVMe™ 2.0 |
| DIMENSION (WxHxD) | 80.15 x 22.15 x 2.38mm |
| WEIGHT | Max 9.0g Weight |
| STORAGE MEMORY | Samsung V-NAND TLC |
| CONTROLLER | Samsung in-house Controller |
| CACHE MEMORY | HMB(Host Memory Buffer) |
| TRIM Support | Supported |
| S M A R T Support | Supported |
| GC (GARBAGE COLLECTION) | Auto Garbage Collection Algorithm |
| ENCRYPTION SUPPORT | AES 256-bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive) |
| DEVICE SLEEP MODE SUPPORT | Yes |
| Warranty | 5-year or 600 TBW limited warranty |
