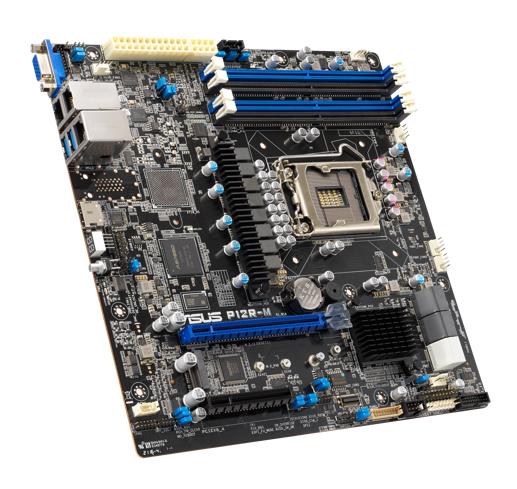

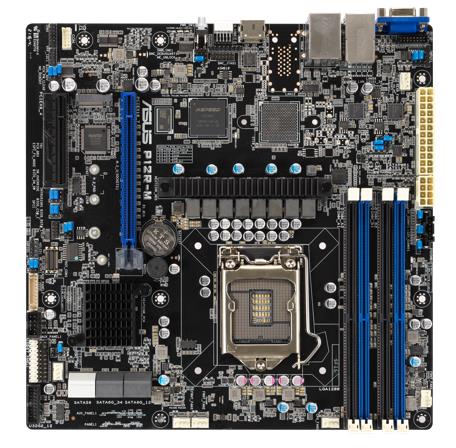

ASUS P12R-M Server MB, 1200, DDR4 UDIMM (4), SATA(0/6), mATX, 3YR WTY

Add Your Review
  • Product SKU: P12R-M
  • Category: ASUS
  • Order within
Available: In Stock
$ 649.00 AUD
  • Ideal for remote office/branch office (ROBO) use and everyday business environments.
  • Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP.
  • Flexible expandability with six native SATA HDDs and two PCI Express 4.0 slots
  • Dual Intel I210AT Gigabit Ethernet with teaming support.
  • One M.2 for up to 32 Gbps performance for faster OS booting.
  • HDMI 1.4 support for high-resolution display maintenance and monitoring.
  • Onboard ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management.
  • Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency.


  • Ideal for remote office/branch office (ROBO) use and everyday business environments.
  • Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP.
  • Flexible expandability with six native SATA HDDs and two PCI Express 4.0 slots
  • Dual Intel I210AT Gigabit Ethernet with teaming support.
  • One M.2 for up to 32 Gbps performance for faster OS booting.
  • HDMI 1.4 support for high-resolution display maintenance and monitoring.
  • Onboard ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management.
  • Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency.



Processor / System Bus

1 x Socket LGA1200

Intel® Pentium® Processors

Intel® Xeon® E processors

Core Logic

Intel® C252 Chipset


Memory

Total Slots :
4 (2-channel)
Capacity :
Maximum up to 128GB UDIMM
Memory Type :
DDR4 3200/2933/2666 UDIMM
Memory Size :
32GB, 16GB, 8GB, 4GB
* Refer to support page for more information

Expansion Slots

Total Slot : 2
Slot Location 4 : PCI-E x8 (Gen4 X4 Link)
Slot Location 6 : PCI-E x16 (Gen4 X16 Link)

Form Factor

Micro ATX (9.6"x9.6", 244mm x 244mm)

Storage

Storage Controller :
6 x SATA3 6Gb/s ports
1 x M.2 connector (2280/2260/2242)
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card

Networking

2 x Intel® I210AT + 1 x Mgmt LAN

Graphic

Aspeed AST2600 with 64MB VRAM

On Board I/O

1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
2 x USB3.2 Gen2 ports
1 x USB3.2 Gen1 header
1 x USB 2.0 pin header
6 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
1 x Serial Port Header
1 x M.2 Connector
1 x VGA Header
1 x Onboard header for optional management card

Back I/O Ports

2 x USB 3.2 Gen 2
1 x VGA Port (VGA from BMC)
1 x HDMI Port (useable only with iGPU)
2 x GbE LAN + 1 x Mgmt LAN

Management Solution

ASUS Control Center Enterprise (Optional)

Optional ASMB10-iKVM for KVM-over-Internet

Weight

Gift Box (1-in-1)

Net Weight : 0.76 KG

Gross Weight : 1.3 KG

Bulk Pack (10-in-1)

Net Weight : 6.9 KG

Gross Weight : 9.5 KG

Environment



Operation temperature: 10℃ ~ 50℃*

Non operation temperature: -40℃ ~ 70℃

Non operation humidity: 20% ~ 90% ( Non condensing)


*The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference.

Accessories

Gift Box (1-in-1)
2 x Support CD
1 x I/O shield
6 x SATA 6G cables
4 x Plate for LGA1200
Bulk Pack (10-in-1)
2 x Support CD
1 x I/O shield
1 x Plate for LGA1200

Monitoring

CPU Temperature
Fan RPM

Note

1.VGA from BMC
*2.HDMI (useable only with iGPU)
