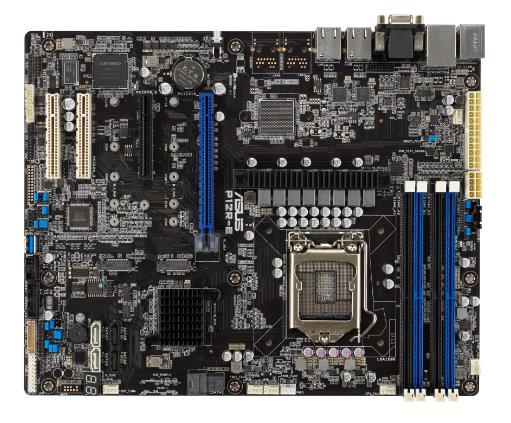

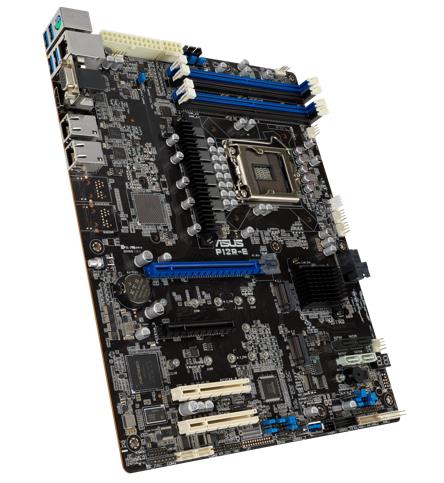

Experience optimal performance and reliability with the ASUS P12R-E Server Motherboard. Designed for 1200 processors and equipped with 4 DDR4 UDIMM slots, this ATX motherboard offers seamless multitasking and efficient data transfer. With 3 years warranty, trust in its durability and enjoy the benefits of SATA(0/8) connectivity for all your storage needs.
- Ideal for remote office/branch office (ROBO) use and everyday business environments
- Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
- Flexible expandability with eight native SATA HDDs and two PCIe Gen4 slots
- Dual Intel I210AT Gigabit Ethernet with teaming support
- Dual M.2 support up to 22110 PCIe Gen4 x4 Link and PCIe Gen3 x2 Link
- HDMI 1.4 support for high-resolution display maintenance and monitoring
- Optional ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
- Optional PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
Experience optimal performance and reliability with the ASUS P12R-E Server Motherboard. Designed for 1200 processors and equipped with 4 DDR4 UDIMM slots, this ATX motherboard offers seamless multitasking and efficient data transfer. With 3 years warranty, trust in its durability and enjoy the benefits of SATA(0/8) connectivity for all your storage needs.
- Ideal for remote office/branch office (ROBO) use and everyday business environments
- Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
- Flexible expandability with eight native SATA HDDs and two PCIe Gen4 slots
- Dual Intel I210AT Gigabit Ethernet with teaming support
- Dual M.2 support up to 22110 PCIe Gen4 x4 Link and PCIe Gen3 x2 Link
- HDMI 1.4 support for high-resolution display maintenance and monitoring
- Optional ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
- Optional PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
Servers & Workstations
|
Processor / System Bus
|
1 x Socket LGA1200 Intel® Pentium® Processors Intel® Xeon® E processors
|
|
Core Logic
|
Intel® C256 Chipset
|
|
Memory
|
Total Slots :
4 (2-channel)
Capacity :
Maximum up to 128GB UDIMM
Memory Type :
DDR4 3200/2933/2666 UDIMM
Memory Size :
32GB, 16GB, 8GB
* Refer to support page for more information
|
|
Expansion Slots
|
Total Slot : 4
Slot Location 1 : PCI-E x8 (Gen3 X4 Link)
Slot Location 2 : PCI-E x8 (Gen3 X4 Link)
Slot Location 4 : PCI-E x8 (Gen4 X8 Link)
Slot Location 6 : PCI-E x16 (Gen4 X16 Link), Auto switch to x8 link if slot 4 is occupied
|
|
Form Factor
|
ATX (12"x9.6", 305mm x 244mm)
|
|
ASUS Features
|
FAN speed control
Rack Ready (Rack and Pedestal dual use)
ASUS Control Center
|
|
Storage
|
Storage Controller :
8 x SATA3 6Gb/s ports by 4 Mini-SAS HD connectors
2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode *
*Gen4 x4 Link & Gen3 x2 Link,gray SATA port will disable when M.2 is SATA signal
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
|
|
Networking
|
2 x Intel® I210AT + 1 x Mgmt LAN
|
|
Graphic
|
Aspeed AST2600 with 64MB VRAM (VGA from BMC)
|
|
On Board I/O
|
1 x VGA Header (VGA from BMC)
1 x HDMI (useable only with iGPU)
1 x TPM header
1 x COM port
1 x PS/2 KB/MS port
1 x Onboard header for optional management card
6 x Fan Header , 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
1 x Serial Port Header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
2 x M.2 Connector
2 x USB3.2 Gen2 ports
2 x USB3.2 Gen1 ports
1 x USB3.2 Gen1 header
|
|
Back I/O Ports
|
2 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1
1 x HDMI Port (useable only with iGPU)
1 x VGA Port (VGA from BMC)
2 x GbE LAN + 1 x Mgmt LAN
1 x PS/2 KB/Mouse
|
|
Management Solution
|
ASUS Control Center Enterprise (Optional)
ASMB10-iKVM for KVM-over-Internet(Optional)
|
|
Weight
|
Gift Box (1-in-1)
Net Weight : 0.76 KG
Gross Weight : 1.3 KG
Bulk Pack (10-in-1)
Net Weight : 6.9 KG
Gross Weight : 9.5 KG
|
|
Environment
|
Operation temperature: 10℃ ~ 50℃*
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
*The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference.
|
|
Accessories
|
Gift Box (1-in-1)
1 x Support CD
1 x I/O shield
4 x SATA 6G cables
1 x Plate for LGA1200
Bulk Pack (10-in-1)
1 x Support CD
1 x I/O shield
1 x Plate for LGA1200
|
|
Monitoring
|
CPU Temperature
Fan RPM
|
