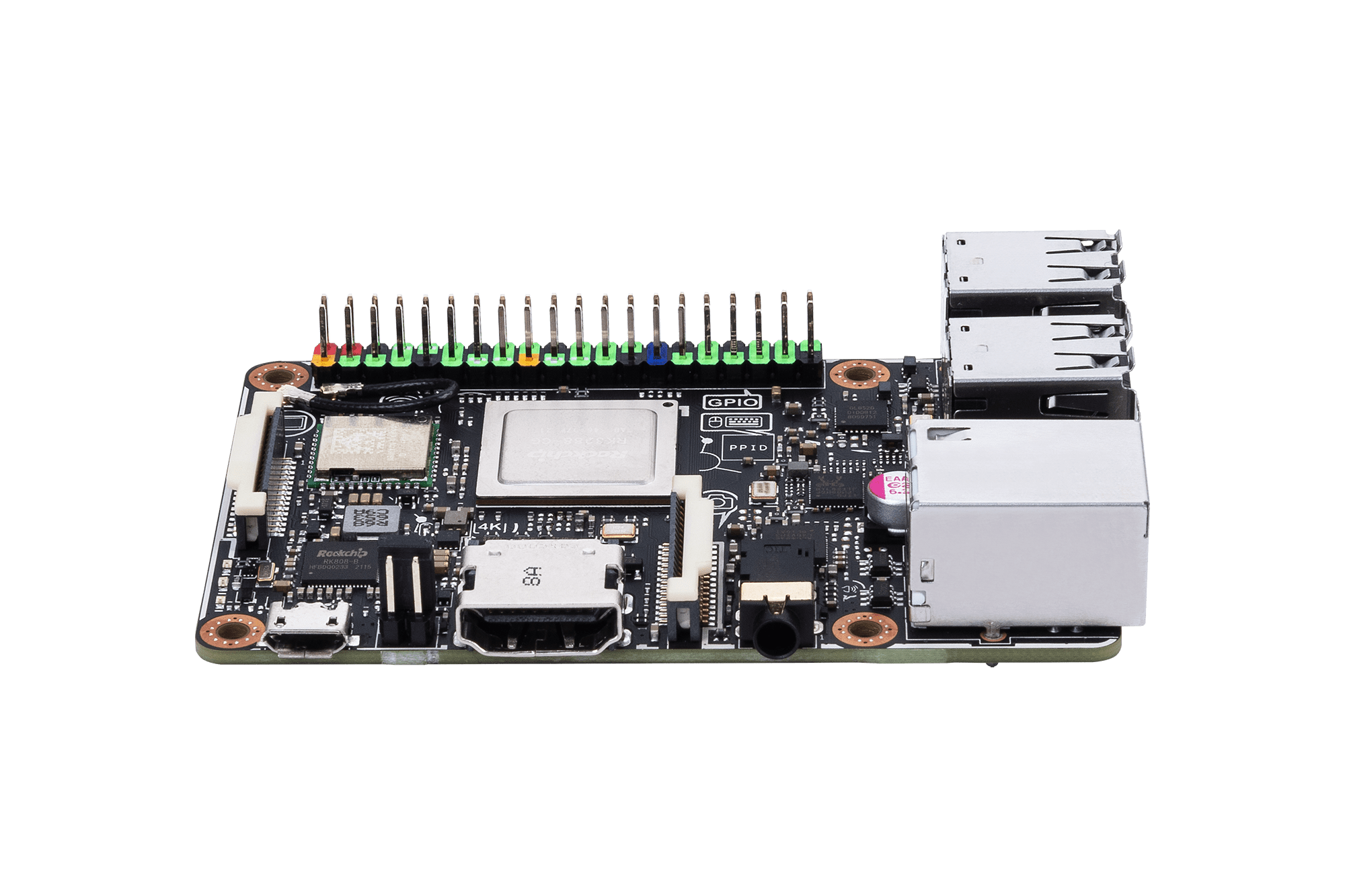

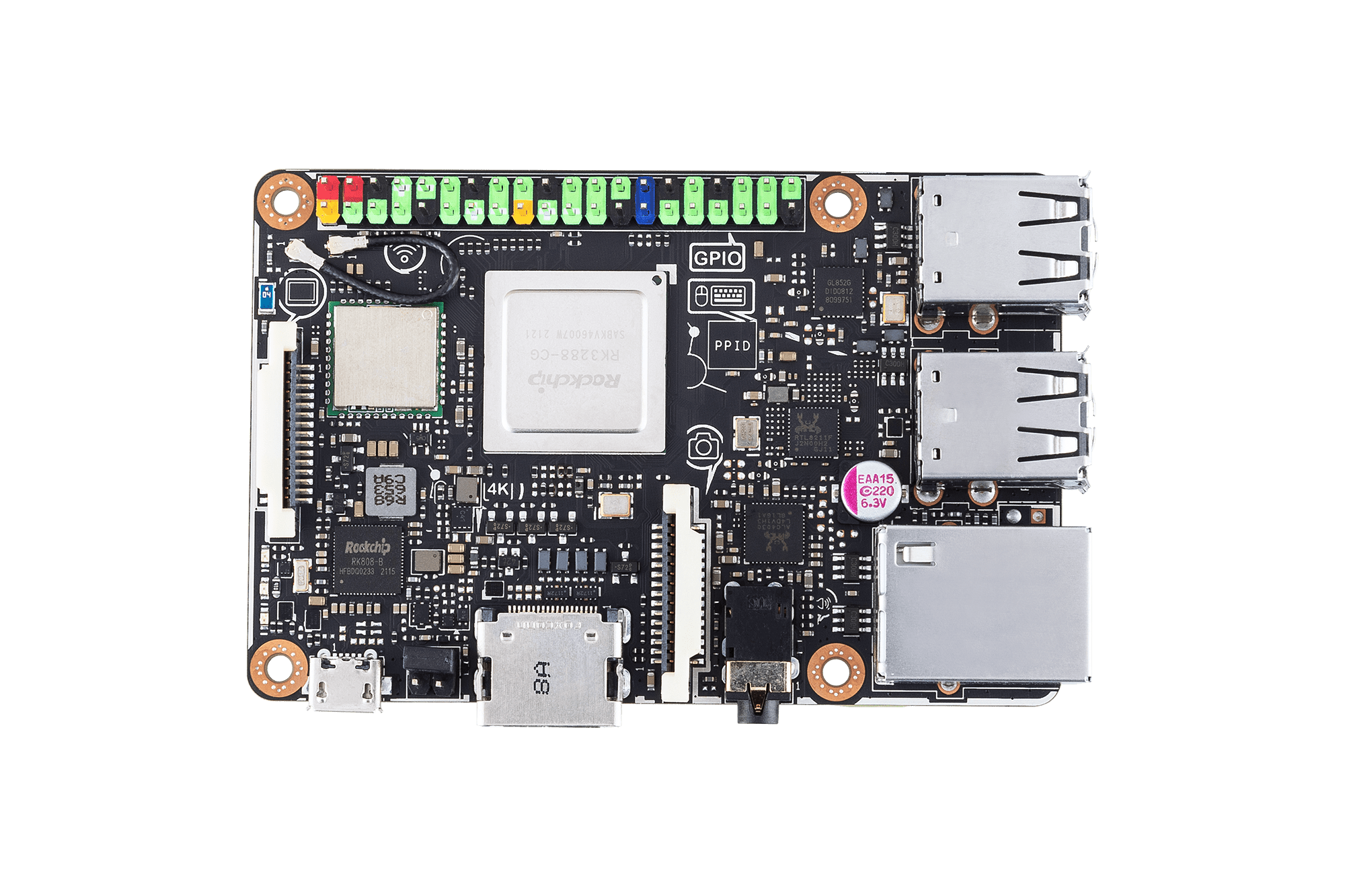

ASUS Tinker Board S R2.0, RK3288-CG.W, T764 GPU, 2GB DDR3, 16GB eMMC, BT 4.2
ARM-based SBC with enhanced and better compatibility. The new and improved Tinker Board S R2.0 is a single board computer (SBC) that offers greater durability, better stability and an overall improved user experience for DIY enthusiasts and makers everywhere.
- Product SKU: TINKER-BOARD-S-R2.0-A-2G-16G
- Category: ASUS
- Order within
CLASS-LEADING PERFORMANCE
With its powerful and modern quad-core ARM-based processor — the Rockchip RK3288-CG.W — Tinker Board S R2.0 series offers significantly improved performance versus other popular SBC boards. Powered by an ARM-based Mali™-T764 GPU, Tinker Board S R2.0's GPU and fixed-function processors allow for a wide range of uses, including high-quality media playback, gaming, computer vision, gesture recognition, image stabilization and processing, as well as computational photography and more.
* HD & UHD video playback at 30 fps on Tinker Board S R2.0 is currently only available via the included media player. Third-party video players and applications may not offer hardware acceleration, which will result in limited or unstable playback performance.
HD AUDIO QUALITY
Tinker Board S R2.0 series is equipped with an HD codec that supports up to 24-bit/192kHz audio. Its integrated audio jack supports audio output and a microphone in, without an extension module.
The audio jack also offers hassle-free plug-in detection so it automatically switches the audio output to an audio jack when the speaker or headset is connected.
STANDARD INTERFACE FOR IOT CONNECTIVITY
Tinker Board S R2.0 series features standard maker connectivity options, including a 40-pin GPIO interface that allow for interfacing with a range inputs. Tinker Board S R2.0 series is equipped with one DSI MIPI connection for displays and touchscreens. The secondary CSI MIPI connection is for connection to compatible cameras allowing for computer vision, and much more.
Tinker Board S R2.0 series also features Gbit LAN for Internet and network connectivity. A dedicated bus resource designed for the LAN port ensures consistent Ethernet performance. The integrated Wi-Fi and Bluetooth controller on the Tinker Board S is shielded with a metal cover to ensure minimal interference and improved radio performance. An integrated IPEX antenna header allows for easy antenna replacement or upgrades.
Tinker Board S R2.0 series also features a full-size HDMI output. Additionally, it includes four USB 2.0 ports for extensive peripheral and accessory connectivity.
CLASS-LEADING PERFORMANCE
With its powerful and modern quad-core ARM-based processor — the Rockchip RK3288-CG.W — Tinker Board S R2.0 series offers significantly improved performance versus other popular SBC boards. Powered by an ARM-based Mali™-T764 GPU, Tinker Board S R2.0's GPU and fixed-function processors allow for a wide range of uses, including high-quality media playback, gaming, computer vision, gesture recognition, image stabilization and processing, as well as computational photography and more.
* HD & UHD video playback at 30 fps on Tinker Board S R2.0 is currently only available via the included media player. Third-party video players and applications may not offer hardware acceleration, which will result in limited or unstable playback performance.
HD AUDIO QUALITY
Tinker Board S R2.0 series is equipped with an HD codec that supports up to 24-bit/192kHz audio. Its integrated audio jack supports audio output and a microphone in, without an extension module.
The audio jack also offers hassle-free plug-in detection so it automatically switches the audio output to an audio jack when the speaker or headset is connected.
STANDARD INTERFACE FOR IOT CONNECTIVITY
Tinker Board S R2.0 series features standard maker connectivity options, including a 40-pin GPIO interface that allow for interfacing with a range inputs. Tinker Board S R2.0 series is equipped with one DSI MIPI connection for displays and touchscreens. The secondary CSI MIPI connection is for connection to compatible cameras allowing for computer vision, and much more.
Tinker Board S R2.0 series also features Gbit LAN for Internet and network connectivity. A dedicated bus resource designed for the LAN port ensures consistent Ethernet performance. The integrated Wi-Fi and Bluetooth controller on the Tinker Board S is shielded with a metal cover to ensure minimal interference and improved radio performance. An integrated IPEX antenna header allows for easy antenna replacement or upgrades.
Tinker Board S R2.0 series also features a full-size HDMI output. Additionally, it includes four USB 2.0 ports for extensive peripheral and accessory connectivity.
| CPU | Rockchip Quad-Core RK3288-CG.W processor |
|---|---|
| Memory | 2GB Dual Channel DDR3 |
| Graphic | Integrated Graphics Processor ARM® Mali™-T764 GPU*1 |
| Storage | 16GB eMMC Micro SD(TF) card slot |
| LAN | RTL GB LAN |
| Wireless Data Network | 802.11 b/g/n, Blutetooth V4.2 + EDR |
| Audio | RTL ALC4030U CODEC |
| USB Ports | 4 x USB 2.0 |
| Internal I/O Ports |
1 x 40-pin headers: - up to 28 x GPIO pins - up to 2 x SPI bus - up to 2 x I2C bus - up to 4 x UART - up to 2 x PWM - up to 1 x PCM/I2S - 2 x 5V power pins - 2 x 3.3V power pins - 8 x ground pins 1 x 2-pin contact pin: - 1 x PWM - 1 x S/PDIF 1 x 15-pin MIPI DSI 1 x 15-pin MIPI CSI |
| Accessories | Passive heatsink*2 User manual |
| Form Factor | 3.37 inch x 2.125 inch ( 8.55 cm x 5.4 cm ) |
| Weight | 55g |
| Environment | Operation temperature: 0℃ ~ 60℃ Non operation temperature: -40℃ ~ 85℃ Non operation humidity: 0% ~ 85% (Non condensing) |
| OS Support | Debian 10 / Android 11 |
| Note | *1. The ARM® Quad-Core Mali GPU supports max. resolution of 4K@30hz with H.264/H.265 hardware decoder. *2. Do not touch the SoC or heatsink surface directly to prevent possible burn injury. |
