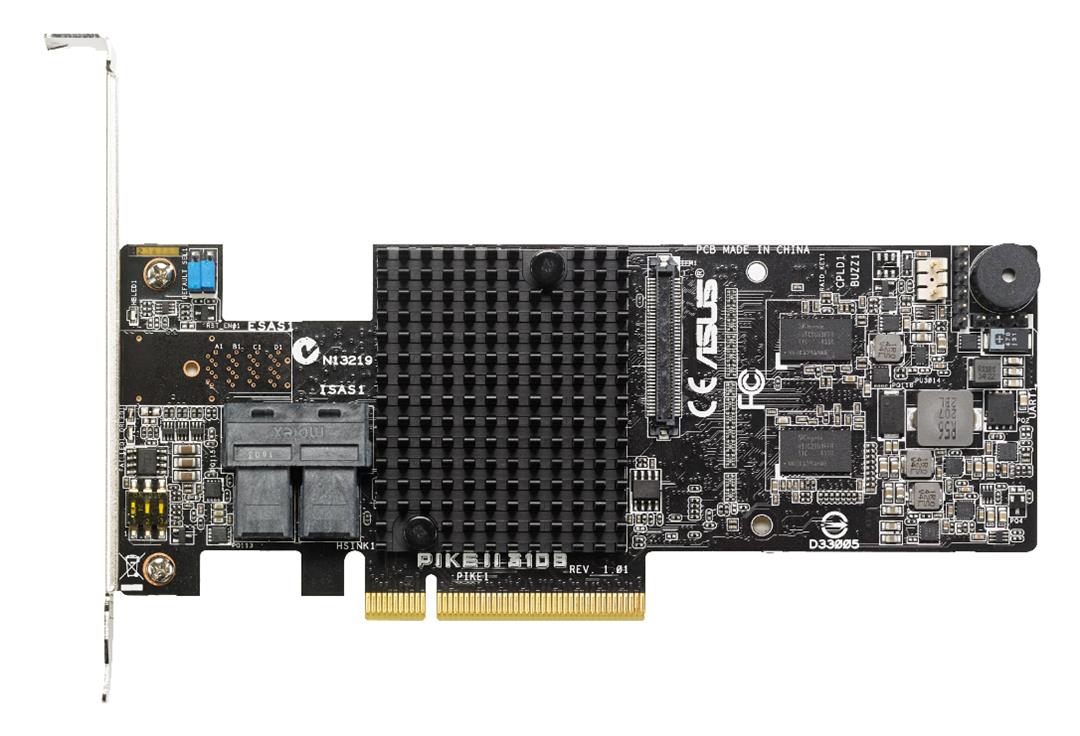

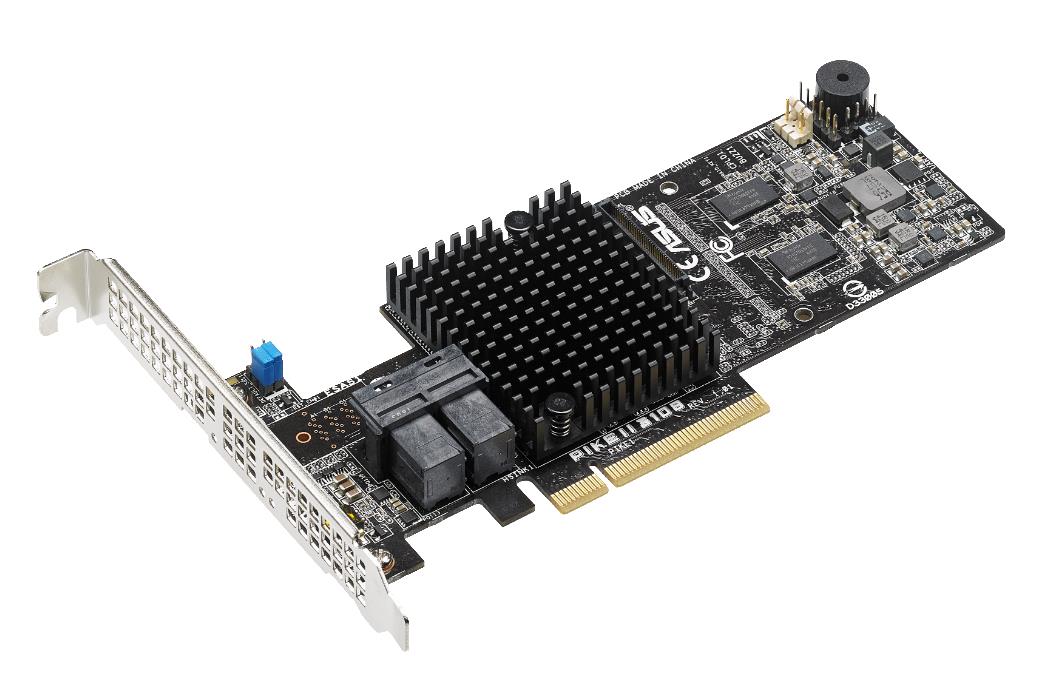

ASUS PIKE II 3108-8i/16PD
Boost your server's performance with the ASUS PIKE II 3108-8i/16PD RAID controller. With its advanced technology and 16-port SAS/SATA support, you can expect up to 80% faster data transfer speeds. Offering reliability and efficiency, this RAID controller is a must-have for any server setup.sever
SAS 12Gb/s Storage Solution with 8 Internal Ports
SAS 12Gb/s Storage Solution with 8 Internal Ports
ASUS PIKE II 3108-8i/16PD (Max. Physical Disk Qty for RAID: 16) is the latest 12Gb/s SAS and PCI-E 3.0 high reliability enterprise storage solution. It meets user needs with support for 6Gb/s SATA and 12Gb/s SAS storage and integrated RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6 and RAID 60 data protection. Just placing the PIKE card can immediately enlarge the capacity and improve the performance, making it the great upgrade option.
|
Chipset |
LSI SAS 3108 |
|
Interface |
PCI-E Gen 3 |
|
Ports |
8 Ports *1 |
|
RAID levels |
RAID 0/RAID 1/RAID 10/RAID 5/RAID 6/RAID 50/RAID 60 |
|
Devices Supported |
SATA : |
|
Data Rate |
SAS 12Gb/s |
|
Cache |
1GB on board SDRAM |
|
Cache Protection |
Header reserved for LSI CacheVault (acquired from LSI existing distribution channel) |
|
Form Factor |
6.6 " x 2.71 " Inch |
|
Package Content |
1 x Full-height Bracket (Default) |
|
Note |
*1 8 SAS 12Gb/s Ports(2 Mini-SAS HD SFF-8643) |
